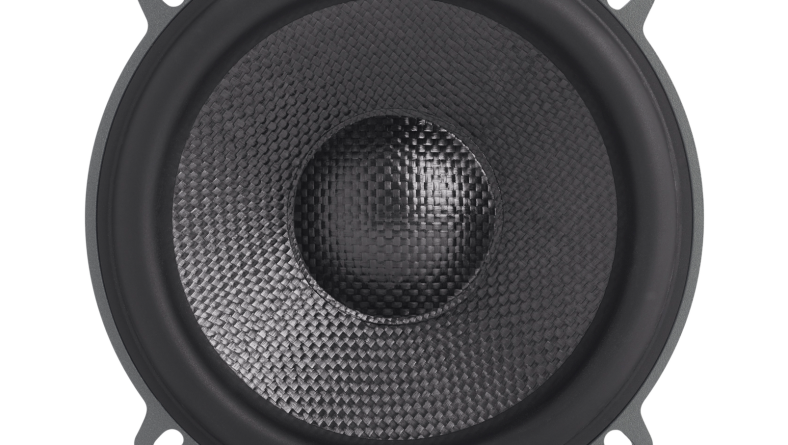

6-1/2″ (165mm) extreme-performance 2-way component system





General Specifications

Power Handling  100 RMS, 400W peak

Sensitivity (@ 2.83V)  90dB

Frequency Response 60Hz – 30KHz

Voice Coil Diameter 1-1/2” (38mm)

Impedance 3.5 ohms



Features

Patented Plus One™ woofer cone

Harman-proprietary Plus One carbon fiber cones are specifically engineered to achieve the optimum blend of rigidity and sensitivity. The result is remarkably accurate sound, as well as exceptionally high SPL performance and low distortion.

Oversized voice coil

Kappa Perfect component speakers employ oversized voice coils, which increase power handling and decrease distortion at high output levels. The voice coils not only improve reliability, they also produce a flatter overall frequency response.

High-definition, edge-driven 30kHz polyimide tweeter

Lightweight yet rigid, the polyimide tweeter in Kappa Perfect component speakers reproduces high frequencies with meticulous detail—an Infinity hallmark. This not only brings out more of the music’s true character, it also improves sound staging capabilities.

Switchable 2-way/3-way crossover

Kappa Perfect component speaker systems include a unique, switchable crossover that lets you select either a 2-way or 3-way system configuration with the addition of the Kappa Perfect 300m midrange speaker. The crossover features weatherproof housing, so it can be mounted in a door.

Sleek industrial design

Combining brushed metal with premium finishes, Kappa Perfect speakers and crossovers are as pleasing to the eyes as they are impressive to the ears.



Max Power500W
Rated Input Power

4 ohms 40W x 4
2 ohms 60W x 4
Bridged 130W x 2
Specifications

Signal to Noise Ratio: 100 dB
Low Pass Filter: 50 – 200 Hz (-24 dB / oct.)
High-Pass Filter: 80 Hz (-12 dB / oct.)
Size(inch): (W)12-3/8″ x (H)2-3/16″ x (D)7-7/8″
Weight(lbs): 4.5

Max Power2000W
Rated Input Power

4 ohms 500W x 1
2 ohms 1000W x 1
Specifications

Signal to Noise Ratio: 100 dB1
Low Pass Filter: 50 – 200 Hz (-24 dB / oct.)1
Infrasonic Filter: 20 – 50 Hz (-24 dB / oct.)1
Bass Boost: 40 Hz (0 – +18 dB)1
Size(inch): (W)13-3/16″ x (H)2-3/16″ x (D)7-9/16″1
Weight(lbs): 6.2

Max Power1000W
Rated Input Power

4 ohms 300W x 1
2 ohms 500W x 1
Specifications

Signal to Noise Ratio: 100 dB
Low Pass Filter: 50 – 200 Hz (-24 dB / oct.)
Bass Boost: 40 Hz (0 – +18 dB)
Size(inch): (W)9-7/16″ x (H)2-3/16″ x (D)7-9/16″
Weight(lbs): 4.0

5-Ch Design Power your entire system with a single 5-channel amplifier. This powerful one amplifier solution for front and rear speakers plus subwoofers, is an easy solution for any vehicle to enhance your factory sound system.
Variable High-Pass Filter

Filters low frequencies out of the music and passes only signals above a certain frequency (called the cut-off frequency) to mid and high range speakers.
Variable Low-Pass Filter

Filters high frequencies out of the music and improves efficiency and sound quality by allowing only the low frequencies to pass to the subwoofer.
Variable Bass Boost

Adjust the fixed bass boost frequency (40Hz) to maximize natural bass performance.
General Features

Operating Voltage: 14.4V (11 – 16 V allowable)
Current Consumption: 54 A
Dimensions (W x H x D): 324 x 55 x 187 mm (12-3/4 x 2-3/16 x 7-3/8)
Weight: 2.8 kg (6.1 lbs)
Warranty: 1 year

TDF(Theft Deterrent Faceplate)
MP3/WMA/WAV/FLAC Files Playback with ID-3 Tag Display
KENWOOD sound reconstruction, restores musical to compressed music

TDF(Theft Deterrent Faceplate)
Drive Change
Maximum Output Power : 50W x 4 (MOSFET Power IC)
Kenwood sound reconstruction, restores musical to compressed music
MP3/WMA/AAC/WAV/FLAC Files Playback with ID-3 Tag Display
Android Rapid Charge
Multi language(English, Spanish)
Dual Phone Connection
Wireless Music Browsing

TDF(Theft Deterrent Faceplate)
Drive Change
Maximum Output Power : 50W x 4 (MOSFET Power IC)
Kenwood sound reconstruction, restores musical to compressed music
MP3/WMA/AAC/WAV/FLAC Files Playback with ID-3 Tag Display
Android Rapid Charge
Multi language(English, Spanish)
Dual Phone Connection
Wireless Music Browsing

TDF(Theft Deterrent Faceplate)
Anti-Dust Flip-up door
Front AUX & Dual USB Interface (Front/Rear)
Bluetooth Built-in (Hands-Free Profile / Audio Profile)
MP3/WMA/AAC/WAV Files Playback with ID-3 Tag Display
