SPECIFICATIONS
Features and Specification
SPECIFICATIONS

Screen
Screen Size: 9 inch WVGA
LCD Type: Transparent Type TN LCD
Operation System: TFT Active Matrix
Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
Effective Number of Picture Elements: 99.99%
Illumination System: White LED Backlighting
Colour System: NTSC, PAL
GPS
GPS Antenna Type: Micro-strip Planar Aerial
Reception Frequency: 1575.42 ±1 MHz
Reception Sensitivity: -130 dB Maximum
Reception Method: Parallel 12 Channels
CEA-2006 Power Ratings
CEA-2006 Power Rating: 4 Ω @14.4V Ƈ%THD+N, S/N 80dBA (ref.1W into 4 Ω), 18W x 4
Max Power Output Ratings
Max Power Output: 4 x 50 W
FM Tuner
Tuning Range: 87.7 – 107.9 MHz
Mono Usable Sensitivity: 9.3 dBf (0.8 µV / 75 ohms)
50dB Quieting Sensitivity: 13.5 dBf (1.1 µV / 75 ohms)
Alternate Channel Selectivity: 80 dB
Signal-to-Noise (S/N) Ratio: 65 dB
Stereo Separation: 35 dB
Capture Ratio: 2 dB
AM Tuner
Tuning Range: 530 – 1,710 kHz
Usable Sensitivity (IEC Standard): 22.5 µV / 27 dBf
Bluetooth®
Bluetooth Version: Bluetooth V2.1+EDR
Output Power: +4 dBm Max. (Power class 2)
HFP: HFP (Hands Free Profile)
HSP: HSP (Head Set Profile)
A2DP: A2DP (Advanced Audio Distribution Profile)
AVRCP: AVRCP (Audio/Video Remote Control Profile)
Disc Player
Frequency Response: 5 -20k Hz ±1 dB
Channel Separation (at 1kHz): 85 dB
Dynamic Range (at 1kHz): 95 dB
Total Harmonic Distortion (at 1kHz): 0.008%
Wow & Flutter (%WRMS): B.M.L.
Horizontal Resolution: 500 lines or greater
Video Ouput Level: 1 Vp-p (75 ohms)
Signal-to-Noise Ratio (video): 100 dB
Signal-to-Noise Ratio: DVD: 60 dB
Connection for USB
USB Requirements: USB 1.1/2.0
Max. Power Consumption: 1,000 mA
USB Class: Mass Storage Class, Play From Device
File System: FAT 12/16/32
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: ACC-LC Format ”.m4a” File
DivX Decoding: ”.divx”, ”.avi” File
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 – 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate.
Total Harmonic Distortion (at 1kHz): 0.008%
Dynamic Range (at 1kHz): 95 dB
Signal-to-Noise Ratio: 100 dB
Channel Separation (at 1kHz): 85 dB
Sound Tuning
Subwoofer Level Adjustment: 0 to +15
Subwoofer Phase Setting: 0° or 180°
BASS ENGINE SQ: 5Mode, Level 0 to +6
High Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
Low Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
Parametric Equalizer (Band 1): 20 – 100 Hz
Parametric Equalizer (Band 2): 63 – 315 Hz
Parametric Equalizer (Band 3): 125 – 500 Hz
Parametric Equalizer (Band 4): 250 – 1k Hz
Parametric Equalizer (Band 5): 500 – 2k Hz
Parametric Equalizer (Band 6): 1k – 4k Hz
Parametric Equalizer (Band 7): 2k – 7.2 k Hz
Parametric Equalizer (Band 8): 5.8k – 12k Hz
Parametric Equalizer (Band 9): 9k – 20k Hz
Parametric Equalizer (Gain): -7 to +7
Time Correction: 0.0 – 9.9ms (0.1ms step)
Application Volume Level: -14 to +14
High Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
High Pass Filter (Gain): -12 to 0 dB
Low Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
Low Pass Filter (Gain): -12 to 0 dB
Dimensions
Din Size: 2DIN
Chassis Size (W x H x D) mm: 178 x 100 x 164 mm
Nose Piece Size (W x H x D) mm: 189.5x 120x 10.25 mm
General
Power Requirement: 14.4 V.DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 4 V / 10k ohms
AUX Audio Output Level: 1.2 V / 10k ohms
Maximum Mounting Angle: 30°
Weight: 2.9 kg
FEATURES

Navigation Function
3 Positioning Sensors: GPS, Gyroscope, Vehicle Speed Pulse
Direct Phone Call from POI data:
Highway Mode:
Drive Lane Suggestion:
Tunnel Mode:
3D maps with elevation model:
3D Motorway Junction View: Junction View with Sign Post
3D City Mode: 3D Building/Icon Display
Advanced TMC Mode:
Map Display Mode: 2D Heading Up, 2D North Up, 3D
7 Alternative Route Recommendation:
Eco Route Search:
Advanced Route Planning:
Smart Routes using historic traffic patterns:
Advanced POI Functions:
Post Code Search:
Free Form Search:
Partial Name Search Smart Search:
Advanced Address Search:
Menu Language: 24 Languages
Voice Guidance Language: 3 Languages,
Map Coverage: USA and Canada (including Alaska, Hawaii, Puerto Rico, Virgin islands )
Map & Database
Map Database Update (Method): Online Map Update
Tuner
Memory Presets: FM:12 / AM:6
Memory: Auto Memory
Seek Mode: Local / DX Selection
HD Radio®
HD Radio®: HD Radio Tuner Built-In
Status Indicator: Digital Reception Indicator
Signal Switching: Automatic Digital/Analog Switching
Multi-Casting: Multi-Cast HD1, HD2, HD3
iTunes® Tagging: iTunes Tagging Supported
Bluetooth®
Bluetooth Module Built-In:
Hands Free Calling: HFP (Hands Free Profile) Compatible
Music Streaming: A2DP (Advanced Audio Distribution Profile) Compatible
Music Streaming Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.4 Compatible
Connection: SSP (Simple Secure Pairing) Supported
Phone Book: Phone Book Synchronization
Shortcut Dialing: 4 Preset Memory (per phone)
Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
Auto Answer:
Redial Function:
Call History: Dialed Call / Received Call / Missed Call
Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
Phone Battery Level Indicator:
Firmware Update:
Microphone: Microphone Included
Advanced BLUETOOTH® Technology:
Device Name Display:
DTMF (Touch-Tone) Function:
Signal Strength Indicator:
Menu Language Selection: 24 Languages
Individual Profile Connection: Hands Free Phone and Music Streaming
Connection for iPod®
Compatibility for iPod®/iPhone®: Made for iPod touch 5th/4th/3rd/2nd/1st Gen., iPod nano 7th/6th/5th/4th/3rd/ Gen., iPod classic 160GB/120GB/80GB, iPod with video, iPhone5S,iPhone5C, iPhone5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G
Connection: KCU-461iVÂ Required (Sold separately)
Music & Video Playback Compatibility:
Artwork Display:
Available Selections: Playlist/Artist/Album/Song/Podcast/Genre/Composer/Audiobook
Alphabet Search:
Direct Up/Dn: Playlist/Artist/Album/Podcast/Genre/Composer
M.I.X. (Shuffle) Capability: Song, Albums, All
Repeat:
Battery Charging:
Connection for USB
USB Connection: USB Extension Cable Included
Music File Playback: MP3/WMA/AAC Playback
Music & Video Playback Compatible:
Video File Playback: DivX Playback
File/Folder Name Search:
Tag Info Search:
Folder Up/Down:
M.I.X. Random Play:
Repeat:
Satellite Radio
SiriusXm Ready: SVX-200 Required
Connection: Simple Plug’N Play Compatible
Preset Memory: 18 Preset Memory
My Game / My Music Alert: My Game / My Music Alert Compatible
Instant Replay: Instant Replay Compatible
iTunes® Tagging: iTunes Tagging Compatible
Disc Player
Disc Type: DVD/CD Player
Disc Playback Type: DVD-Video, CD, CD-R/RW, DVD±R/±RW
DVD Direct Menu Control:
CD Text Display:
CD Text Search:
M.I.X. Random Play:
Repeat:
DAC: 24 Bit DAC
Playable Format: DVD-Video, CDDA, MP3/WMA/AAC, DivX
Sound Tuning
Bass Engine Pro:
Subwoofer Level Adjustment:
Subwoofer Phase Select:
BASS ENGINE SQ:
Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
9-band Parametric Equalizer:
MediaXpander:
Time Correction: 6-Channel Digital Time Correction
Crossover: Digital Crossover Setting
Application Volume Level Setting:
Sound Setting Data Download:
Easy, Step-by-Step Sound Customization:
Alpine TuneIt App Ready :
General
Power Output: 4 x 50 W High Power Amplifier
Display: 9 inch WVGA High Resolution Display
Display Backlighting System: White LED Backlighting System
Control Type: Touch
Automatic Setting Change: 2 Users
High Grade Audiophile Design:
Display Color Selection: 5 Background Colors (Blue/Red/Amber/Green/Black) Selectable
AUX Input: 2 A/V AUX Inputs
AUX Output: 1 A/V AUX Output
PreOut: 3 PreOuts (4V, Front/Rear/Subwoofer)
Steering Wheel Remote Control Ready:
Remote Control Ready:
VisualEQ:
Live Contrast Adjustment:
Menu Language: 24 Languages (for AV/Bluetooth), 29 Language (Navigation Menu and Voice Guidance)
Clock:
Auto Dimmer:
Power Antenna Lead:
Remote Turn-On:
Firmware Updatable:
50/50 Split Screen:
My Favorites Function:
Optical Outputs:
HDMI Input:
Navigation Guidance Mix:
Camera Connection & Built-in Controls for Multi-View Camers:
Camera Guide Line Adjustment:
Rearview Camera Display Automatic Boot-up:
Simple Mode & Info Mode Display Selection:
StartStop function (for idling stop):
iDatalink :
PANDORA®
Pandora: For iPhone
Bluetooth Pandora: For Android

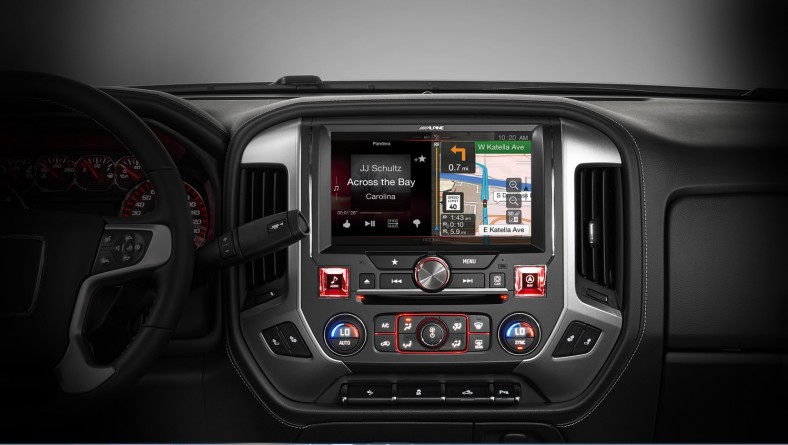

Just when you thought your dash had it all, the X110-SRA raises the bar. With its groundbreaking 10-inch touchscreen, the X110-SRA is truly the largest factory radio replacement for the 2014-up GMC Sierra available, period. Don’t judge the X110-SRA just by its screen, though. The X110-SRA is packed with new features and controls befitting of its revolutionary size. There’s no doubt the X110-SRA will make a statement in your GMC Sierra and upgrade your driving experience.

FIRST CLASS ALPINE ENGINEERING FOR THE GMC SIERRA

The 10-inch X110-SRA is Alpine engineered specially for the GMC Sierra. The X110-SRA comes with a stunning dash bezel that houses the 10-inch screen and provides a matching fit and finish, as if it came that way from the factory. The rotary volume knob and big crystal buttons for music and navigation sources are backlit to match the Sierra’s factory gauges. Other hard keys provide direct access to the main menu and My Favorites feature.

CAPTIVATING 10-INCH TOUCHSCREEN AND NEW, INNOVATIVE USER INTERFACE
The X110-SRA offers the largest and only 10-inch touchscreen radio replacement for the 2014-up GMC Sierra. The massive WXGA anti-glare screen is the best in-class for a truck environment.

A brand new user interface allows for 4-way swipe action control: Left, Right, Down, Up. You are just one swipe away from the most commonly accessed features:

Swipe to the Left to access the Navigation commands
Swipe to the Right to access the Audio and Video commands. Within the Audio and Video screen, you can swipe across to access all your entertainment sources (such as HD Radio, Pandora, SiriusXM, Bluetooth audio streaming, etc.)
Swipe Down to access the adjustment settings to the Audio system or Rear Seat Entertainment system (sold separately)
Swipe Up to access Bluetooth and Source Selection

KEEP SELECT FACTORY CONTROLS WITH THE IDATALINK MAESTRO® MODULE (INCLUDED)

The X110-SRA retains GMC Sierra feature variations* and also displays vehicle information on the 10-inch screen:

OnStar®
Voice Activation
Bluetooth® wireless technology
Rear View Camera
Steering Wheel Controls
Parking Sensor Integration
Customizable On-screen Vehicle Information (such as Tire Pressure Alerts and Check Engine Codes)
*For 2014-Up GMC Sierra. Not compatible with factory equipped Bose® systems.

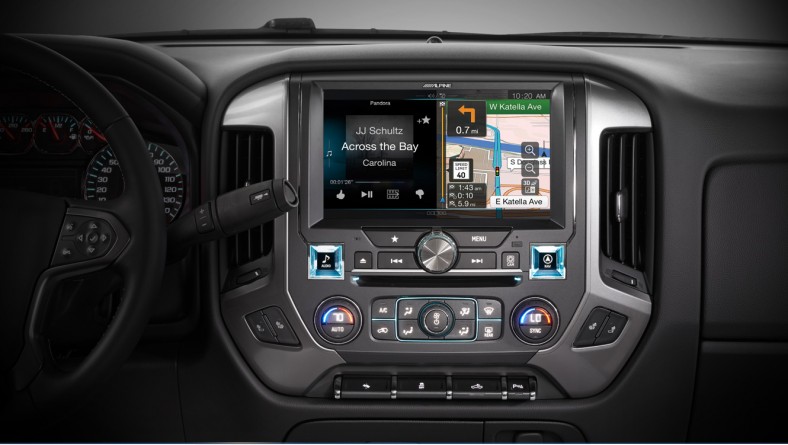

Just when you thought your dash had it all, the X110-SLV raises the bar. With its groundbreaking 10-inch touchscreen, the X110-SLV is truly the largest factory radio replacement for the 2014-up Chevrolet Silverado available, period. Don’t judge the X110-SLV just by its screen, though. The X110-SLV is packed with new features and controls befitting of its revolutionary size. There’s no doubt the X110-SLV will make a statement in your Chevrolet Silverado and upgrade your driving experience.

The 10-inch X110-SLV is Alpine engineered specially for the Chevrolet Silverado. The X110-SLV comes with a stunning dash bezel that houses the 10-inch screen and provides a matching fit and finish, as if it came that way from the factory. The rotary volume knob and big crystal buttons for music and navigation sources are backlit to match the Silverado’s factory gauges. Other hard keys provide direct access to the main menu and My Favorites feature.

CAPTIVATING 10-INCH TOUCHSCREEN AND NEW, INNOVATIVE USER INTERFACE
The X110-SLV offers the largest and only 10-inch touchscreen radio replacement for the 2014-up Chevrolet Silverado. The massive WXGA anti-glare screen is the best in-class for a truck environment.

A brand new user interface allows for 4-way swipe action control: Left, Right, Down, Up. You are just one swipe away from the most commonly accessed features:

Swipe to the Left to access the Navigation commands
Swipe to the Right to access the Audio and Video commands. Within the Audio and Video screen, you can swipe across to access all your entertainment sources (such as HD Radio, Pandora, SiriusXM, Bluetooth audio streaming, etc.)
Swipe Down to access the adjustment settings to the Audio system or Rear Seat Entertainment system (sold separately)
Swipe Up to access Bluetooth and Source Selection

KEEP SELECT FACTORY CONTROLS WITH THE IDATALINK MAESTRO® MODULE (INCLUDED)

The X110-SLV retains Chevrolet Silverado feature variations* and also displays vehicle information on the 10-inch screen:

OnStar®
Voice Activation
Bluetooth® wireless technology
Rear View Camera
Steering Wheel Controls
Parking Sensor Integration
Customizable On-screen Vehicle Information (such as Tire Pressure Alerts and Check Engine Codes)
*For 2014-Up Chevrolet Silverado. Not compatible with factory equipped Bose® systems.

Description
The CVP-1152 from Cerwin-Vega is a single 15″ 2-way PA speaker from the CVP series of full-range passive systems. The CVP-1152 features a custom-designed 3″ voice coil 15″ woofer (1000W peak handing) and a Mylar high-frequency driver to create smooth response even at high decibel levels. This speaker is designed for performers looking to step up to professional-quality sound reproduction with versatile features and performance.
The CVP-1152 PA speaker also includes Cerwin-Vega’s striking, rugged cast-aluminum grill that is Cerwin-Vega’s trademark. Combining a CVP full-range speaker with its C-Series folded horn and CVP passive direct-fire subs creates the ultimate in performance-matched PA systems from the company that knows bass—and now full-range systems.
Performance Data: Cerwin-Vega 15″ woofer and 44mm diaphragm tweeter Frequency Response: 50 Hz – 18.5 kHz / 130 dB SPL Power Capacity: 500W RMS / 1000W Program / 2000W Peak Recommended Power: 750 w – 1000 w Sensitivity (1w/1m): 99 dB Nominal Impedance: 8 ohms Flyable with industry standard M10 eyebolt (35mm long)
Weight 67lbs 30kg
Dimensions (HxWxD)
28.1″ x 18.2″ x 16″
71.4 cm x 46.2 cm x 40.7 cm

Description
The Cerwin-Vega CVP-121 is a 21″ subwoofer that features enormous amounts of power handling capability in a compact design. The C VP-121 is also one of the best values on the market. This subwoofer features Cerwin-Vega’s innovative Stroker technology, which utilizes a three spider driver design to optimize cone excursion and voice coil efficiency. The CVP-121 subwoofer is capable of handling massive amounts of power – 2000 watts continuous and 4000 watts peak – for overwhelming bass reproduction.
To add to the CVP-121’s unique design, the subwoofer is housed in a cabinet the size of a traditional 18″ subwoofer, and includes a cast aluminum grille that functions as a heat sink for the subwoofer’s driver. Cerwin-Vega has incorporated design elements in their new line of passive subwoofers that allow for flexibility in the configuration. The CVP-121 subwoofer also features three pole cups that allow for the addition of up to three top boxes.
Performance Data: 21″ Cerwin-Vega Stroker woofer w/ a carbon-fiber reinforced cone Frequency Response: -3 dB 35 Hz – 135 kHz / -10 dB 33 Hz – 155 Hz Power Capacity: 1000W RMS / 2000W Program / 4000W Peak Recommended Power: 1500 w – 2000 w Sensitivity (1w/1m): 103 dB Nominal Impedance: 8 ohms
Weight 137 lbs 62 kg
Dimensions (HxWxD)>
23.31″ x 24.02″ x 31.57″
59.2 cm x 61.0 cm x 80.2 cm

Your Ultimate GM Truck and SUV Upgrade

Your life is an adventure. Your active lifestyle is not confined to four walls, so you rely on your truck for work and play. The X009-GM is the upgrade you need to keep up with your busy life from work to play. Keep your factory controls and add enhancements like navigation, customizable short-cuts, Bluetooth® wireless technology and sound settings optimized for your truck – all controllable through the easy-to-use, large 9-inch touch-screen. With its oversized screen, integrated system and advanced technology, this premium system will restyle your truck and provide you with a high quality driving experience.
For more information please visit Alpine Product

Same Special 8-Inch Screen Now with Bigger Features.

The record-breaking 8-Inch AVN System is back better than ever to suit your needs with an enhanced My Favorites feature, Dual Zone Video Control, retained factory controls, 3D navigation and built-in Bluetooth® wireless technology.

• Enhanced My Favorites At Your Fingertips

  Enjoy up to ten pages of eight shortcuts per user for the features that you use the most, such as:

  • Audio Sources (HD Radio™, Pandora®, iPod®)
  • Phone Settings (Most-dialed Contacts)
  • Navigation Commands (Favorite Destinations, Quick Place Search)

  A new shortcut soft key within all audio and hands-free sources makes it even easier to add sources than before. Share your vehicle with others. Set up “My Favorites” for up to two users. Easily add, delete, re-name, and re-arrange your short-cut icons by dragging the icon(s) to a new location on the screen. Your settings are kept as a personal profile linked to your phone via Bluetooth. The X008U loads your system preferences when your phone is connected, so you can quickly access the features you use the most by simply pressing the “star” button.

Welcome to the New Standard in Simple Usability and Convenience

The 7-Inch AVN System is back with an enhanced My Favorites feature, Dual Zone Video Control, retained factory controls, 3D navigation and built-in Bluetooth® wireless technology.

Integrated with Pandora® Internet Radio for iPhone® and Android™ Smartphones

Stream music from your Android smartphone using Alpine’s Advanced technology. Enjoy easy wireless operation of your favorite Pandora channels with Thumbs Up/Thumbs Down buttons directly on the faceplate, QuickSearch features, and even create new Pandora stations and bookmark your favorite tunes on-the-go. Alpine’s Media Xpander PRO DSP-Sound Expansion circuitry ensures the best possible sound for streaming music from your Pandora connection. To enjoy the same great Pandora features from your iPhone, simply connect the included iPod/iPhone audio/video cable.

Note: Third party services may not be available in all areas; please contact an authorized retailer for coverage in your area.

General Specifications

Power Handling (Continuous/Peak)100W/300W
Impedance2 Ohms
Audio Specifications

Sensitivity94dB
Frequency Response40Hz – 25kHz
Speaker Specifications

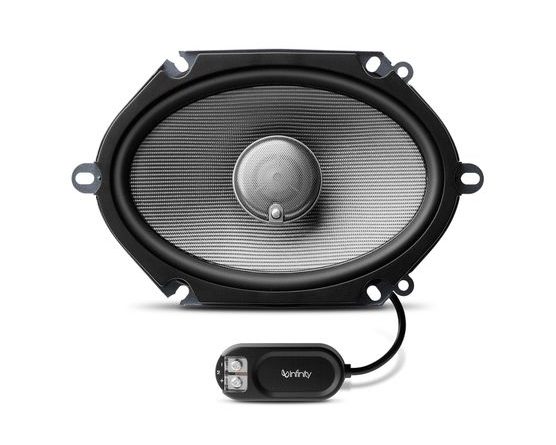

Speaker Type6″ x 8″/5″ x 7″ Two-Way Loudspeaker
